How is the maize flour mill machine working?

Maize flour mill machine

How is the maize flour mill machine working?

Working in Shijiazhuang Hongdefa Machinery seven years for maize flour mill machine. I would like to introduce you to the following aspects of the operation of the milling machine. And I think it will help you understand the milling machine and how it works

The maize flour mill machine is process maize kernel to maize flour, maize meal, maize grits. Physical properties remain unchanged, the final product is maize flour, maize meal use for staple food especially in African countries, and the maize grits use for puffing, snack food in many countries.

Here is the introduce the maize flour mill machine technical flow for you

The maize flour mill machine is full complete line contains cleaning, degerminatong, milling, packing, controlling system.

flour mill machine
maize flour mill machine


Get price and more details


  1. Maize cleaning system:

In cleaning system use maize cleaner, destoner, magnetic separator ect to remove the impurities, such as stones, dust, straw to get the clean raw material.The clean raw material transport by bucket elevator to moisture damper.

 2. Condition system:

Moisture damper: dampener is used to control the water in the process clean maize. In using the machine, the moisture of the supplies could be stable and well-proportioned. The maize is fed into the dampener through the front-end inlet. Water is sprayed into the maize near the inlet. Together with the separately added water, the maize is transferred from the end to the top of the machine by the mixing blades when intensive intermixing and water penetration by the rotor whirling system are achieved. The thoroughly dampened maize is discharged from the machine outlet.

3. Degerminating system:

After damper, the maize kernel will sleep in the Mid-Condition for 2-3hours, the germ and skin will absorb enough water, the endosperm not absorb water, it is more easily to separate the skin and germ from the endosperm by degerminator. The degerminator with Japan Technology, it will realize the separating of endosperm and maize skin and germ to insure can get pure maize flour, maize meal, maize grits with low fat.  The maize germ, skin and maize endosperm separate, the maize endosperm transport to roller mill, the maize germ, skin use for animal feed.

4. Milling system.

Different capacity of maize flour mill machine use different capacity of roller mill, the roller mill effect is the same. The mill is one of most important machine of whole processing line, is mainly for grinding. To break big size maize endosperm to small size. Depend on client’s market need to mill maize flour, maize meal, maize grits ect.

5. Sifting system:

Sifter has many layers, each layers has screen, the screen with different mesh, according to the clients market need the screen can adjust to produce mostly suitable market final product. High efficiency sifting, mix proof to get credible run, a perfect classification machine. can classify the material that from break, reduction and scratch systems and sifting to get the maize flour suitable for market need.

6. Packing system:

Simple operation, high work efficiency     Automatic packing pp woven bag, plastic bag.       5-10kg/Bag, 10-25kg/Bag, 25-50kg/Bag

7. Controlling system

PLC control system                 Touch screen control system

That is the full complete line maize flour mill machine from cleaning to degerminatong, milling, packing, controlling system.

Except for different capacity maize flour mill machine, we also supply wheat flour milling machine.

flour mill machine
maize flour mill machine
Get price and more details


Know more details about maize flour mill machine click here:

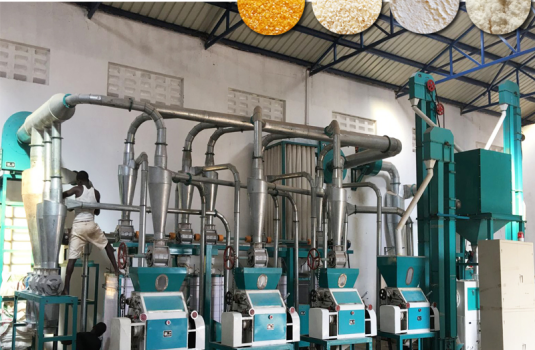

In Kenya, we have running 30tons per 24h maize flour mill machine,  it can produce high quality super withe meal. If you want this maize flour mill machine, please feel free to contact me with:

Cell/WhatsApp/: +8613833461840



1 Comment

Hardy Djevanor

15 8 月, 2022 at 3:26 上午

What if we don’t want to degerm the corn and want to mill the whole grain?
